GYS-L Class 150
SPECIFICATION
Y-PATTERN BODY SCREWED CAP
STAINLESS STEEL SCREEN ASBESTOS FREE
THREADED TO BS 21 (ISO 7) / ASME B1.20.1 OR NPT
| Working Pressure | 25 bar) C.W.P 10.3 bar Saturated Steam |
| Testing Pressure | 37.5 bar Hydrostatic 80psi (5.5 bar) Air |
| Working Temperature | -10ºC ~ 180ºC |
| Suitable Media | Water & Oil |
| Part | Material | ASTM |
|---|---|---|
| Body | Bronze (Gunmetal) | B62 C83600 |
| Cap | Bronze (Gunmetal) | B62 C83600 |
| Screen | Stainless Steel | AISI 304 |
| Gasket | Non-Asbestos Sheet |
| Size | Hole Diameter | Opening | ||
|---|---|---|---|---|
| mm | inch | mm | inch | (%) |
| 15 ~ 50 | ½ ~ 2 | 1.31 x 0.76 | 0.05 x 0.03 | 35 |

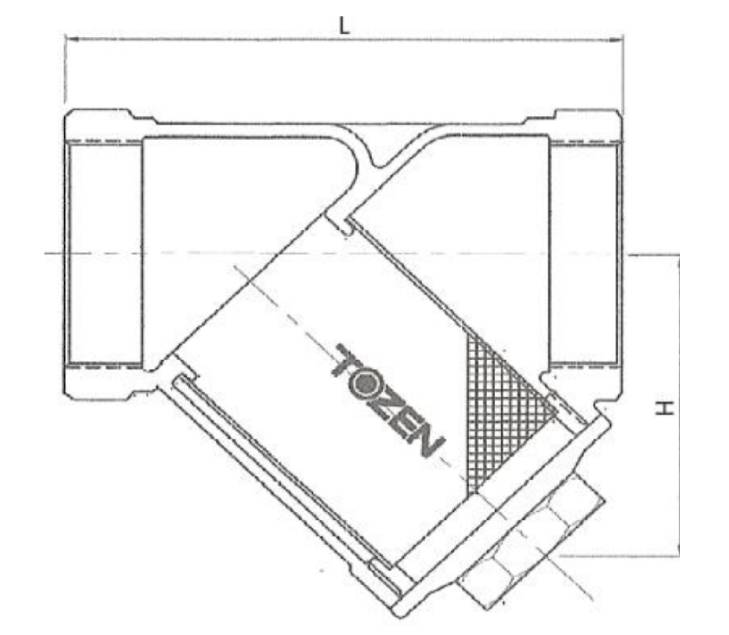

| Size | L | H | |||
|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch |
| 15 | 1/2 | 52.0 | 2.0 | 40.5 | 1.6 |
| 20 | 3/4 | 66.5 | 2.6 | 48.0 | 1.9 |
| 25 | 1 | 81.5 | 3.2 | 57.0 | 2.2 |
| 32 | 1 1/4 | 93.0 | 3.7 | 73.6 | 2.9 |
| 40 | 1 1/2 | 108.0 | 4.3 | 76.0 | 3.0 |
| 50 | 2 | 125.0 | 4.9 | 94.0 | 3.7 |
Note:
1. Design and specifications are subject to change without prior notice.
