CYS-A Class 125 2″-24″
SPECIFICATION
BOLTED COVER WITH BLOW-OFF DRAIN PLUG
STAINLESS STEEL PERFORATED SCREEN
FLANGED TO ANSI CLASS 125
| Working Pressure | 200 psi |
| Testing Pressure | 350 psi |
| Working Temperature | 14˚F to 248˚F |
| Suitable Media | Water, Oil & Gas |
| Part | Material | ASTM |
|---|---|---|
| Body | Cast Iron | A126 Class B |
| Cover | Cast Iron | A126 Class B |
| Screen | Stainless Steel | S30400 |
| Blow-off Plug | Carbon Steel |
Ductile Iron body available upon request.
| Size (inch) | Hole Diameter | Free Flow Area (inch2 ) |
|---|---|---|
| 2″~6″ | 0.059 | 104 |
| 8″~14″ | 0.098 | 26 |
| 16″~24″ | 0.138 | 22 |

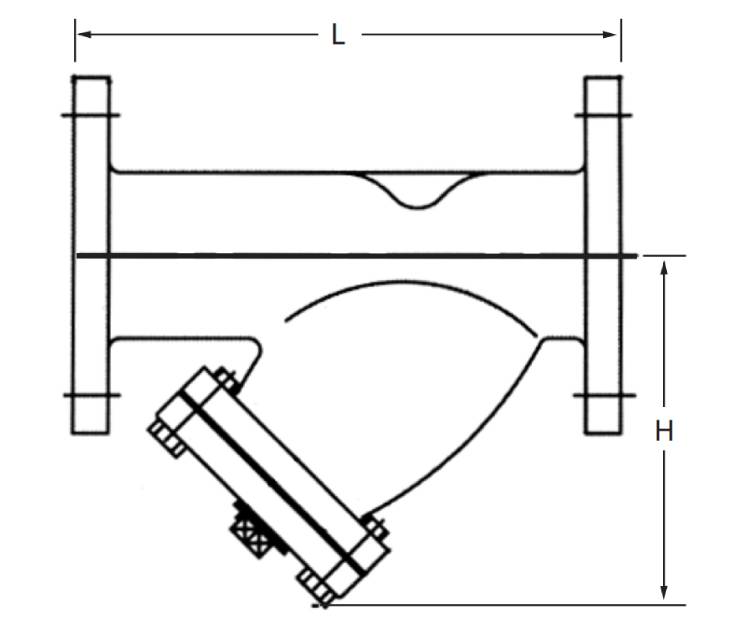

| Size inch |
L inch |
H inch |
Plug Size inch |
|---|---|---|---|
| 2 | 9.1 | 6.3 | 1 |
| 2-1/2 | 11.4 | 7.1 | 1 |
| 3 | 12.2 | 8.5 | 1 |
| 4 | 13.8 | 9.3 | 1.5 |
| 5 | 15.7 | 10.8 | 1.5 |
| 6 | 18.9 | 12 | 1.5 |
| 8 | 23.6 | 15.4 | 2 |
| 10 | 28.7 | 21.3 | 2 |
| 12 | 33.5 | 26.8 | 2 |
| 14 | 38.6 | 29.1 | 2 |
| 16 | 43.3 | 33.3 | 2 |
| 18 | 47.2 | 33.0 | 2 |
| 20 | 49.2 | 35.7 | 2 |
| 24 | 57.1 | 42.4 | 2 |
Note:
1. JIS B2239 10K and other flange standards available upon request.
2. If used for gas application, please consult our sales office.
3. Design and specifications are subject to change without prior notice.
