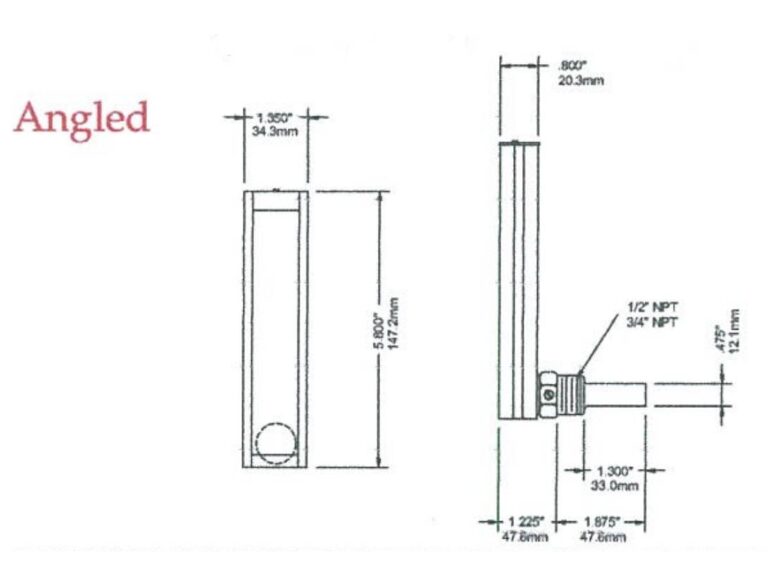

The TOZEN 5AS Industrial Thermometer is used in heating, ventilation and air conditioning applications within the plumbing and construction industry. The thermometer features an impact resistant black polypropylene case that will not chip, peel or disfigure. A brass separable socket is standard and the thermometer is available in either a straight (bottom connection) or 90° angled (back connection) case style.
| Scale: |
Aluminum, painted white with black markings
|
| Case: | Polypropylene, black |
| Lens: | Glass |
| Tube: | Glass, cushioned |
| Liquid Filling: | Kerosene, tinted red |
| Stem: | Brass |
| Swivel Nut: | Brass |
| Thermowell: | Brass 1/2″ NPT standard |
| Operating Pressure: | Maximum 710 psi (50 kg/cm)2 |
| Ambient Temp: | -40 to 122° F (-40/50° C) |
| Process Temp.: | -40 to 400° F (-40/200° C) |
| Accuracy: | +/-2% of full scale |
| Protection: | IP54 |
| RANGES | STRAIGHT | ANGLE |
|---|---|---|
| -40/110° F & -40/40° C |
T130
|
T140 |
| 20/180° F & -5/80° C | T131 | T141 |
| 30/2400 F & 0/115°C | T132 | T150 |
|
30/300° F & 0/150° C
|
T134 | T143 |
| 50 / 400° F & 10/200° C | T133 | T142 |
| PRODUCT CODE | MATERIAL | CONNECTION |
|---|---|---|
| W62 (included with 5AS thermometer) |
Brass
|
1/2″ NPT |
| W62-1 | 304 St/St | 1/2″ NPT |
| W64 | Brass | 3/4″ NPT |
| W64-1 | 304 St/St | 3/4″ NPT |
