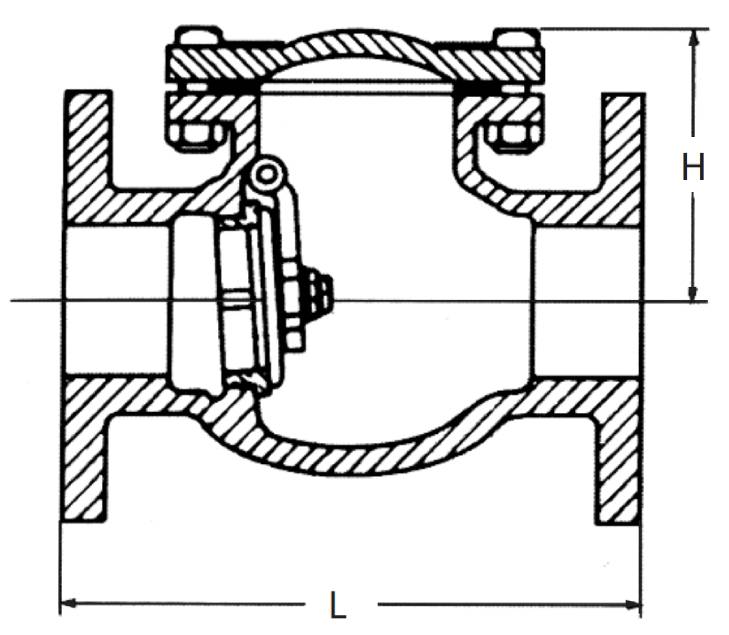

DCV-A Class 150 2″-24″
SPECIFICATION
BRONZE / RESILIENT SEAT
• FLANGED TO ANSI CLASS 150
| Working Pressure | 200 psi |
| Testing Pressure | Shell : 350 psi Seat : 220 psi |
| Working Temperature | 14˚F to 248˚F (Gunmetal / EPDM) 14˚F to 176˚F (NBR) |
| Suitable Media | Water, Oil & Gas |
| Part | Material | ASTM |
|---|---|---|
| Body | Ductile Iron | A536 65-45-12 |
| Disc | Ductile Iron | A536 65-45-12 |
| Seat Ring | Gunmetal | BB62 C83600B62 |
| Disc Ring | Gunmetal EPDM NBR | C83600 |
| Size inch |
L inch |
H inch |
|---|---|---|
| 2 | 8 | 4.4 |
| 2-1/2 | 8.5 | 5.3 |
| 3 | 9.5 | 5.6 |
| 4 | 11.5 | 6.4 |
| 5 | 13 | 7.8 |
| 6 | 14 | 8.3 |
| 8 | 19.5 | 10.1 |
| 10 | 24.5 | 11.8 |
| 12 | 27.5 | 13 |
| 14 | 31 | 17.7 |
| 16 | 36 | 20.5 |
| 18 | 36 | 21.7 |
| 20 | 40 | 23.2 |
| 24 | 48 | 26.8 |
Note:
1. JIS B2239 10K and other flange standards available upon request.
2. If used for gas application, please consult our sales office.
3. Design and specifications are subject to change without prior notice.
