PTH SERIES HANGER ISOLATOR

pth-series-1

PTH series

Rubber Vibration Isolation Hanger
Vibration control for plumbing, duct, ceiling equipment.

Share:
Inquire now
Download Brochure
Benefit
  • Combination of rubber and case
  • Excellent vibration isolating performance
  • Wide range of sizes
Feature
  • Great load bearing quality. With a wide range of sizes, it can support most
    of the loads
  • With pre-setup of rubber and case makes installation easier
  • Double nut attachable specified by the Ordinance of the Ministry of Land, Infrastructure, Transport and Tourism (MLIT).
  • Available in Single and Double type, depends on your selection
Intended Purpose

Used as vibration proof rubber for suspension supporting of facility equipment with followings:
horizontal plumbing, duct, fan, fan coiled unit, package A/C, line pump.

Typical applications

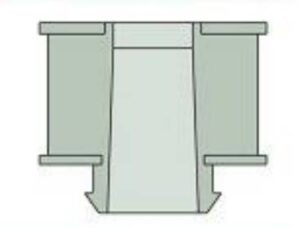

Structure and dimension

Number Name Material
1 Hunger SS400
2 The upper side of metal fittings SS400
3 Rubber itself Synthetic rubber
4 The lower side of metal fittings SS400
  • Bolt, nut and washer are not included.
  • The metal component is covered by electrolytic zinc-coated



The single rubber

Model number Model number
PTH-22 PTH-60
PTH-30 PTH-80
PTH-40 PTH-100
PTH-50 PTH-100h



Type Dimension (mm) The maximum bolt diameter Static spring constant
N/mm (Kgf/mm)		 Load range of usage
N   (Kgf)		 Natural frequency
A B L Φd1 Φd2 ΦD H
PTH-22S  22 34 85  11 10.5   22  25 M10 (W3/8) 35 (3.6) 69~147 (7~15) 13~8.8
PTH-22W 110 – 18 (1.8) 9.2~6.3
PTH-30S 30 44 90 11 12 30 21 137 (14) 98~441 (10~45) 21~10
PTH-30W 110 – 69 (7.0) 15~7.1
PTH-40S 40 55 105 15 14 40 25 M12
(W1/2)		 216 (22) 294~883 (30~90) 15~8.9
PTH-40W 130 – 108 (11) 11~6.3
PTH-50S 50 66 105 15 14 50 23 490 (50) 686~1765 (70~180) 15~9.5
PTH-50W 130 – 245 (25) 11~6.7
PTH-60S 60 76 110 15 14 60 28 647 (66) 1373~2746 (140~280) 12~8.7
PTH-60W 140 – 324 (33) 8.7~6.2
PTH-80S 80 100 130 18 16 80 40 M16
(W5/8)		 785 (80) 2157~4903 (220~500) 11~7.2
PTH-80W 170 – 392 (40) 7.7~5.1
PTH-100S 100 130 160 20 20 100 45 1157 (118) 3923~8336 (400~850) 9.8~6.7
PTH-100W 205 – 579 (59) 6.9~4.7
PTH-100hS 100 130 160 20 20 100 45 1863 (190) 6865~12749 (700~1300) 9.4~6.9
PTH-100hW 205 – 932 (95) 6.6~4.9

Dynamic spring constant of vibration control rubber is 1.3 times higher than that of a static one.
Note: For choosing PTH, detailed calculation will be needed in centroid position or tension by hanging bolts when using air conditioning device. Please ask for more detail to our sales representative.

Handling instructions
  • The product has to be protected from any damage.
  • Please note that the product must be avoided adhesion such as strong acid, strong alkali, organic solvent, fat and oil.
  • Rubber needs to be attached as equalized loading toward the vertical and compression direction.
  • Please make sure to use the device within a given load range.
  • The product must be protected from spark like welding.
  • The product must be attached with double nut.
  • When supporting pipes, pulps, flange and the other weights need to be considered for calculation.
  • Product should be chosen after calculating the load weight to the each hanging bolt when the multiple pipes are hung all together.
  • The impact or excessive force could lead to release the parts from assembled product.



This brochure may be revised without prior notice. We apologize in advance for any inconvenience this may cause.
