R-CGV-A Class 125 2″-24″
SPECIFICATION
RISING STEM • OUTSIDE SCREW AND YOKE
MSS SP-70 • FLANGED TO ANSI CLASS 125
| 2″~12″ | 14″~24″ | |
|---|---|---|
| Working Pressure | 200psi | 150 psi |
| Testing Pressure | Shell : 350 psi Seat : 200 psi |
Shell : 262 psi Seat : 150 psi |
| Working Temperature | 14˚F to 248˚F | |
| Suitable Media | Water, Oil & Gas |
* 200 psi pressure rating is available for 14″~24″. The body material shall be Ductile Iron.
| Part | Material | ASTM |
|---|---|---|
| Body | Cast Iron | A126 Class B |
| Bonnet | Cast Iron | A126 Class B |
| Disc | Cast Iron | A126 Class B |
| Seat Ring | Gunmetal | B62 C83600 |
| Stem | Brass Stainless Steel |
B16 C36000 AISI 420 |
| Packing | Graphite | Non-Asbestos |
| Handwheel | Cast Iron | A126 Class B |

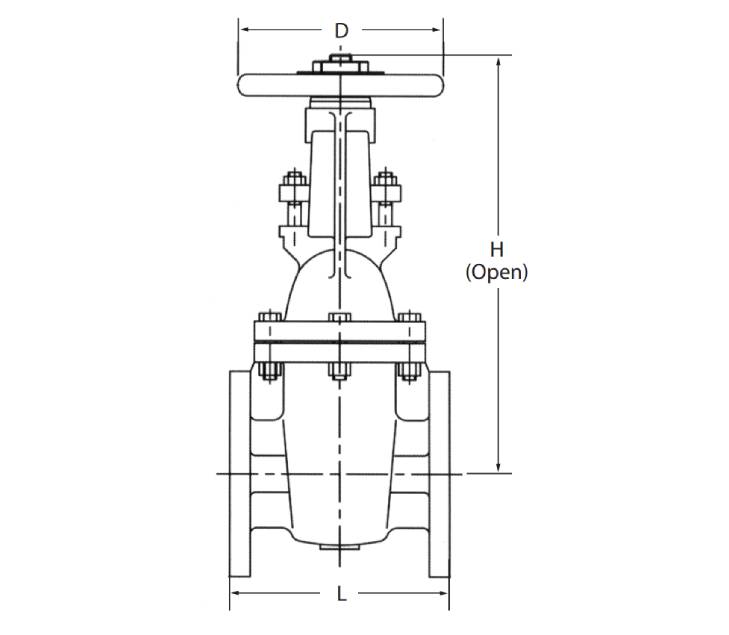

| Size inch |
L inch |
H (Open) inch |
D inch |
|---|---|---|---|
| 2 | 7 | 13.8 | 7.5 |
| 2-1/2 | 7.5 | 15.4 | 7.5 |
| 3 | 8 | 17.9 | 7.5 |
| 4 | 9 | 22.1 | 11.8 |
| 5 | 10 | 26 | 11.8 |
| 6 | 10.5 | 30.8 | 13.8 |
| 8 | 11.5 | 36.6 | 13.8 |
| 10 | 13 | 46.6 | 15.7 |
| 12 | 14 | 54.8 | 17.7 |
| 14 | 15 | 62.8 | 20 |
| 16 | 16 | 74.8 | 22 |
| 18 | 17 | 87 | 24 |
| 20 | 18 | 98 | 24 |
| 24 | 20 | 116.5 | 30 |
Note:
1. JIS B2239 10K and other flange standards available upon request.
2. If used for gas application, please consult our sales office.
3 Design and specifications are subject to change without prior notice.
