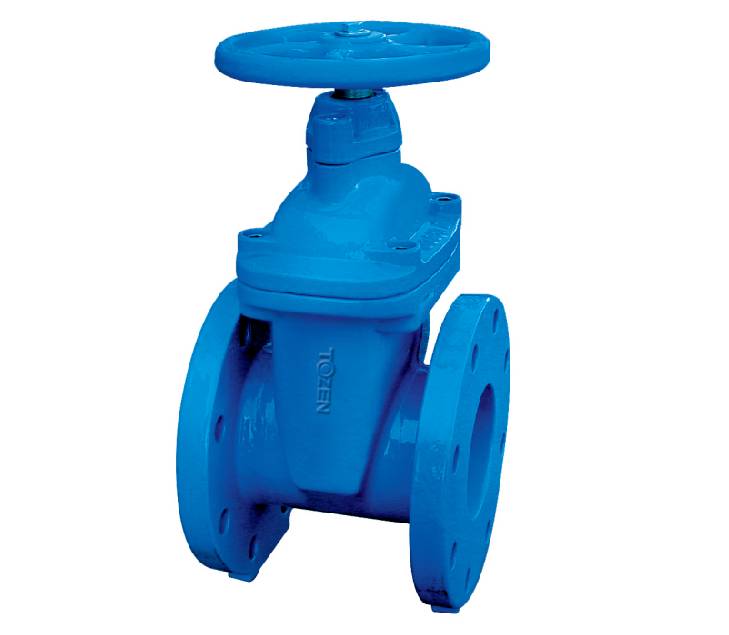

DRGV-A Class 150 2″-24″
SPECIFICATION
NON-RISING STEM • INSIDE SCREW
CONFORMS TO AWWA C509 • FLANGED TO ANSI CLASS 150
| 2″~12″ | 14″~24″ | |
|---|---|---|
| Working Pressure | 200psi | 150 psi |
| Testing Pressure | Shell : 350 psi Seat : 200 psi |
Shell : 262.5 psi Seat : 150 psi |
| Working Temperature | 14˚F to 248˚F (EPDM Coated) 14˚F to 180˚F (NBR Coated) |
|
| Suitable Media | Water, Oil & Gas |
| Part | Material | ASTM |
|---|---|---|
| Body | Ductile Iron | A536 65-45-12 |
| Bonnet | Ductile Iron | A536 65-45-12 |
| Disc | Ductile Iron (EPDM / NBR Coated) |
A536 65-45-12 |
| Stem | Stainless Steel | AISI 420 |
| O-Ring | EPDM NBR |
|
| Wrench Nut | Ductile Iron | A536 65-45-12 |
| Handwheel | Ductile Iron | A536 65-45-12 |
| Size inch |
L inch |
H (Handwheel) inch |
H (Wrench Nut) inch |
D inch |
|---|---|---|---|---|
| 2 | 7 | 9.4 | 10 | 7 |
| 2-1/2 | 7.5 | 10 | 10.7 | 7 |
| 3 | 8 | 11 | 11.7 | 7 |
| 4 | 9 | 12 | 12.6 | 7 |
| 5 | 10 | 15 | 15.6 | 10 |
| 6 | 10.5 | 16.4 | 17 | 10 |
| 8 | 11.5 | 20.7 | 20.7 | 14 |
| 10 | 13 | 24.5 | 24.5 | 14 |
| 12 | 14 | 28 | 28 | 14 |
| 14 | 15 | 3.4 | 34 | 17.1 |
| 16 | 16 | 40 | 40 | 21.1 |
| 18 | 17 | 40.6 | 40.6 | 24 |
| 20 | 18 | 47.3 | 47.3 | 24 |
| 24 | 20 | 53.3 | 53.3 | 30 |
Note:
1. If used for gas application, please consult our sales office.
2. Design and specifications are subject to change without prior notice.
