Requisites for vibration-proof measure
• For anchor, hanging bolt
• For ceiling hanging vibration-proof, sound-proof measure
Application
• Insulation for duct, hanging vibration-proof of piping, light ceiling hanging machinery
• Insulation for vibration-proof fixing anchor, and machinery assembly bolt
• For the protection of plating and painting, and insulation for electric corrosion of dissimilar metals

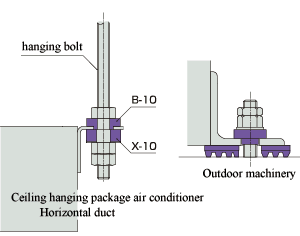

Example of installation
Specifications
| Model |
φD1 |
φD2 |
φd |
t1 |
t2 |
| B-10 |
25 |
12.5 |
9.5 |
6 |
3 |
| B-12 |
28 |
14.5 |
12.5 |
8 |
5 |
| B-16 |
36 |
20 |
17 |
8 |
5 |
| B-20 |
40 |
25 |
21 |
8 |
5 |
| XT-10 |
22 |
15 |
12 |
8 |
3 |
| XT-18 |
40 |
18 |
14 |
6 |
4.5 |
| XT-22 |
40 |
22 |
18 |
6 |
4.5 |
| XT-23 |
50 |
23 |
18 |
9 |
10 |
| XT-26 |
50 |
26 |
22 |
8 |
5 |
| X-10 |
26 |
- |
10 |
10 |
- |
