GBV Type 600
SPECIFICATION
MSS SP-110
SCREWED BODY CAP FULL BORE
BLOW-OUT PROOF STEM PTFE SEAT
THREADED TO BS 21 (ISO 7) / ASME B1.20.1 OR NPT
| Working Pressure | 42 bar C.W.P 10.3 bar @ 186ºC |
| Testing Pressure | Shell: 62 bar Hydrostatic Seat: 45.5 bar Hydrostatic 80psi (5.5 bar) Air |
| Working Temperature | -10ºC ~ 180ºC |
| Suitable Media | Water & Oil |
| Part | Material | ASTM |
|---|---|---|
| Body | Bronze (Gunmetal) | C83600 |
| Cap | Bronze (Gunmetal) | C83600 |
| Ball | Brass | C37700 |
| Seat | PTFE | |
| Stem | Brass | C37700 |
| Seal | PTFE | |
| Gland | Brass | C37700 |
| Handle | Steel |

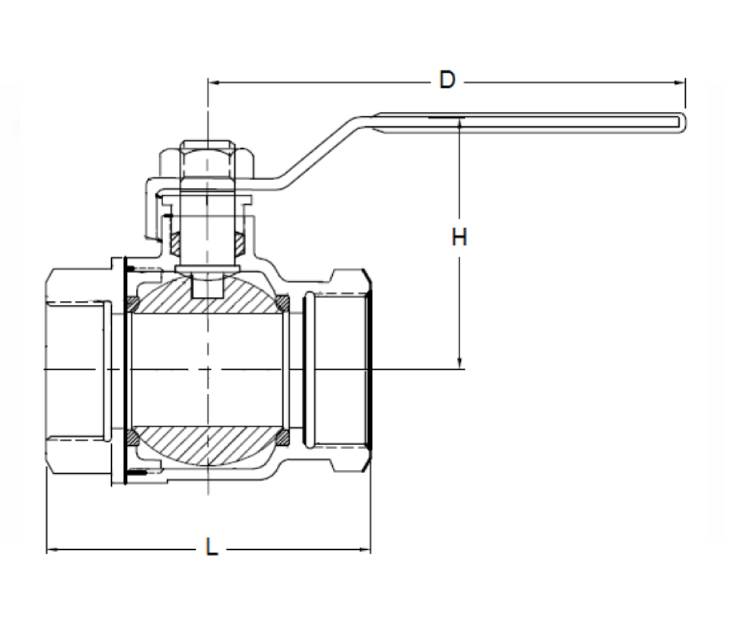

| Size | L | H | D | ||||
|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch |
| 10 | 3/8 | 45.8 | 1.8 | 49.0 | 1.9 | 87.0 | 3.4 |
| 15 | 1/2 | 54.4 | 2.1 | 49.0 | 1.9 | 96.0 | 3.8 |
| 20 | 3/4 | 62.8 | 2.5 | 53.0 | 2.1 | 96.0 | 3.8 |
| 25 | 1 | 77.0 | 3.0 | 66.5 | 2.6 | 127.0 | 5.0 |
| 32 | 1-1/4 | 85.6 | 3.4 | 72.5 | 2.9 | 127.0 | 5.0 |
| 40 | 1-1/2 | 94.1 | 3.7 | 79.0 | 3.1 | 142.0 | 5.6 |
| 50 | 2 | 110.8 | 4.4 | 88.5 | 3.5 | 165.0 | 6.5 |
Note:
1. Design and specifications are subject to change without prior notice
