STAINLESS STEEL FLEXIBLE HOSE
SF600
|
DN15~100

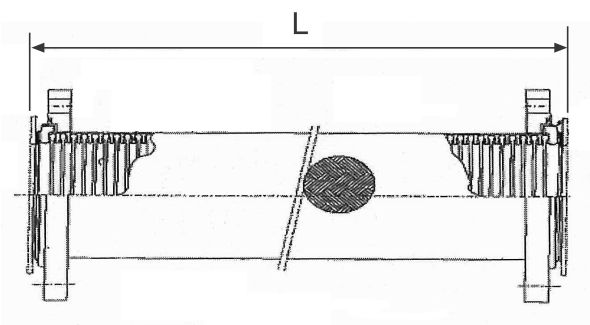

DN125~150
>DN200
Stainless Steel Flange Type Flexible Hose
|
Structure
|
|
|
|
|
No.
|
Parts |
Material |
| 1 |
Collar |
Stainless Steel |
| 2 |
Loose Flange |
Carbon Steel |
| 3 |
Bellow |
Stainless Steel
|
| 4 |
Braid |
Stainless Steel
|
| |
|
|
|
|
|
| |
|
Structure
|
|
|
|
|
No.
|
Parts |
Material |
| 1 |
Split Ring |
Carbon Steel |
| 2 |
Ring |
Carbon Steel/Stainless Steel |
| 3 |
Loose Flange |
Carbon Steel
|
| 4 |
Bellow |
Stainless Steel
|
| 5 |
Braid |
Stainless Steel |
| 4 |
Joint Sheet |
|
| |
|
|
|
|
|
| |
|
Structure
|
|
|
|
|
No.
|
Parts |
Material |
| 1 |
Collar |
Carbon Steel/Stainless Steel |
| 2 |
Loose Flange |
Carbon Steel/Stainless Steel |
| 3 |
Bellow |
Stainless Steel
|
| 4 |
Braid |
Stainless Steel
|
| |
|
|
|
|
|
| |
| Dimensions and Allowable Movements |
| Nominal Diameter |
Overall Length
[mm] |
Lateral Movement [mm] |
Working Pressure ［MPa］ |
| mm |
inch |
| 15 |
1/2 |
300 |
34 |
1.6 |
| 20 |
3/4 |
300 |
34 |
1.6 |
| 25 |
1 |
300 |
34 |
1.6 |
| 32 |
1 1/4 |
300 |
33 |
1.6 |
| 40 |
1 1/2 |
300 |
32 |
1.6 |
| 50 |
2 |
300 |
24 |
1.6 |
| 65 |
2 1/2 |
300 |
33 |
1.6 |
| 80 |
3 |
300 |
25 |
1.6 |
| 100 |
4 |
300 |
22 |
1.6 |
| 125 |
5 |
300 |
17 |
1.6 |
| 150 |
6 |
300 |
14 |
1.6 |
| 200 |
8 |
300 |
6 |
1.6 |
| 250 |
10 |
300 |
5.5 |
1.6 |
| 300 |
12 |
300 |
5 |
1.6 |
| |
|
|
|
|
|
Note:
1. Other specifications are also available, please consult with us.
2. Design and specifications are subject to change without prior notice.
|
Note：The contents of this catalogue are subject to change without notice.
